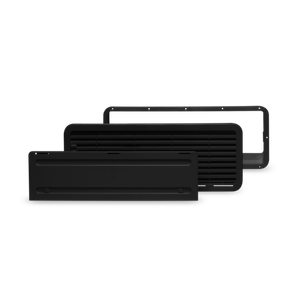

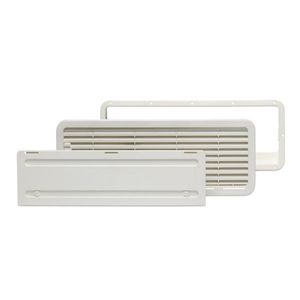

DOMETIC LS200 Bottom Ventilation Grill And Winter Cover

The DOMETIC LS200 Bottom Ventilation Grill And Winter Cover is for use in DOMETIC single door models as an accessory for the 5 and 8 series absorption refrigerators. Available in white or black – please select the appropriate colour when ordering.

The DOMETIC ventilation system helps avoid an energy-wasting heat build-up behind your fridge. The lower ventilation system consists of a mounting frame, a ventilation grill and a winter cover. These ventilation systems are designed to release the heat on the back of your fridge and allow easy service and maintenance, i.e., cleaning the exhaust duct without requiring removal of the refrigerator.

A new vehicle will probably have this system installed. If retro-fitting you need to fit the ventilation grills in the outside skin of the vehicle above and below the refrigerator. The upper grill allows heated air to escape, while the lower grill admits cooler air from the outside to the rear of the refrigerator.

The proven LS 100 Top Vent / LS 200 Bottom Vent system used in all single door absorption refrigerators has stood the test of time.

Key features of the DOMETIC LS200:

• Designed for easy maintenance without removing fridge.
• Only the correct installation of both grills ensures the refrigerator’s optimum performance.
• Ventilation area (cm²) 390
• Winter cover dimensions: Height 130mm x Depth 440mm
• Avoid wasting energy by removing heat which builds up around your fridge
• The lower grill allows cool air in while the upper grill allows warm air to escape
• Suitable for DOMETIC single-door models of fridge
• Available in white or black – please select the appropriate colour option

>Manual

The manual for this item is available from the ’Download Manual’ tab above.

** Suitable as an accessory for the RM 5 series, RM 8 series and RMS 8 series refrigerators

** Please ensure that correct vents are ordered, as once purchased all vents are non-returnable.
