DOMETIC RM 10.5P Double Hinged Absorption Fridge Freezer
* Discontinued - please see the DOMETIC RMS 10.5P
The DOMETIC RM 10.5P Double Hinged Absorption Fridge Freezer is a 93...
* Discontinued - please see the DOMETIC RMS 10.5P

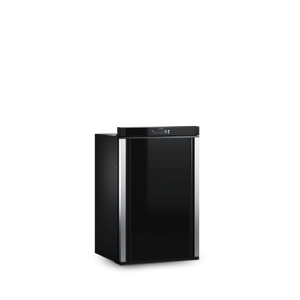

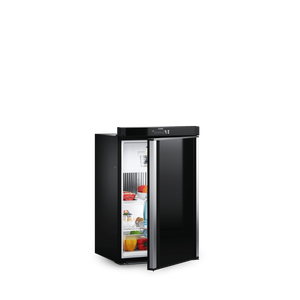

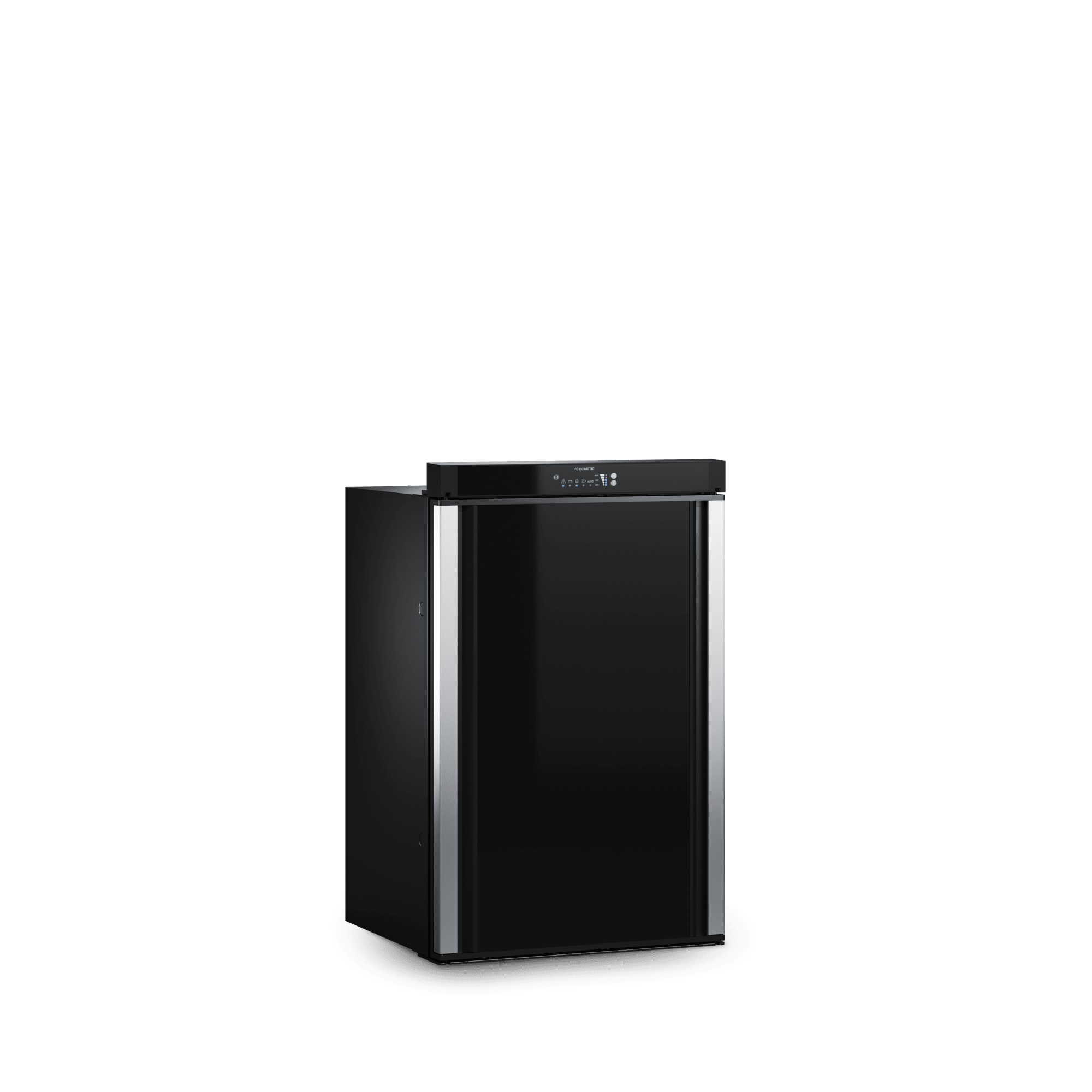

The DOMETIC RM 10.5P Double Hinged Absorption Fridge Freezer is a 93 litre under the counter fridge with new LED display. This new absorption fridge adds chic and stylish looks to your kitchenette, with an elegant flush-fitting door opening to a well organised interior with adjustable storage solutions. Fitted with a double-hinged door, the versatile under-counter fridge can be opened left and right using its full-height aluminium handles. If you want to use the entire space for refrigeration, simply remove the patented freezer compartment and rearrange the shelves to have it just the way you need it! Enjoy noiseless absorption cooling with automatic energy selection of the 3-way energy source, on 12 V, 230 V or gas, while the new generation LED control technology allows you to control and adjust settings with ease. Designed for building into recreational vehicles, caravans and motorhomes (following manufacturers guidelines).
Smart Features:
The 10-series absorption refrigerators offer a unique benefit: the double-hinged door. Thanks to this patented solution, they can be opened to the left and right as required, without the need to change the hinge. Simply use one of the two convenient and elegant aluminium handles, which extend over the full height of the fridge. The intuitive door handle extends across the entire height of the refrigerator and enables easy opening at any height. A two-point locking system keeps the door securely in place at all times. A new and elegantly designed LED display ensures optimal readability of refrigerator settings and is easily controlled with an ergonomic knob. With the LED Light Bar you will get uniform energy-saving illumination of the refrigerator compartment.
Key Features of the DOMETIC RM 10.5P Double Hinged Absorption Fridge Freezer:
- 12 Volt/230 Volt/ Gas
- Cooling system: Absorption refrigerators run in silence, making them perfect for combined sleeping and cooking spaces.
- Gross Volume: 93 Litres
- Storage Volume: 86 Litres – fridge storage 77.40L and freezer storage 8.20L
- Temperature Range: Refrigerator +7 °C, freezer compartment up to –12 °C at ambient temperatures up to 32 °C (equivalent to climate class SN)
- Designed for building into recreational vehicles (following manufacturers guidelines)
- Double-hinged door – opens left and right without the need to change the hinge
- Patented removable freezer compartment (opens to the bottom) which can make more room for refrigeration
- LED Control Panel - Intuitive control of cooling temperature, energy source and comfort features

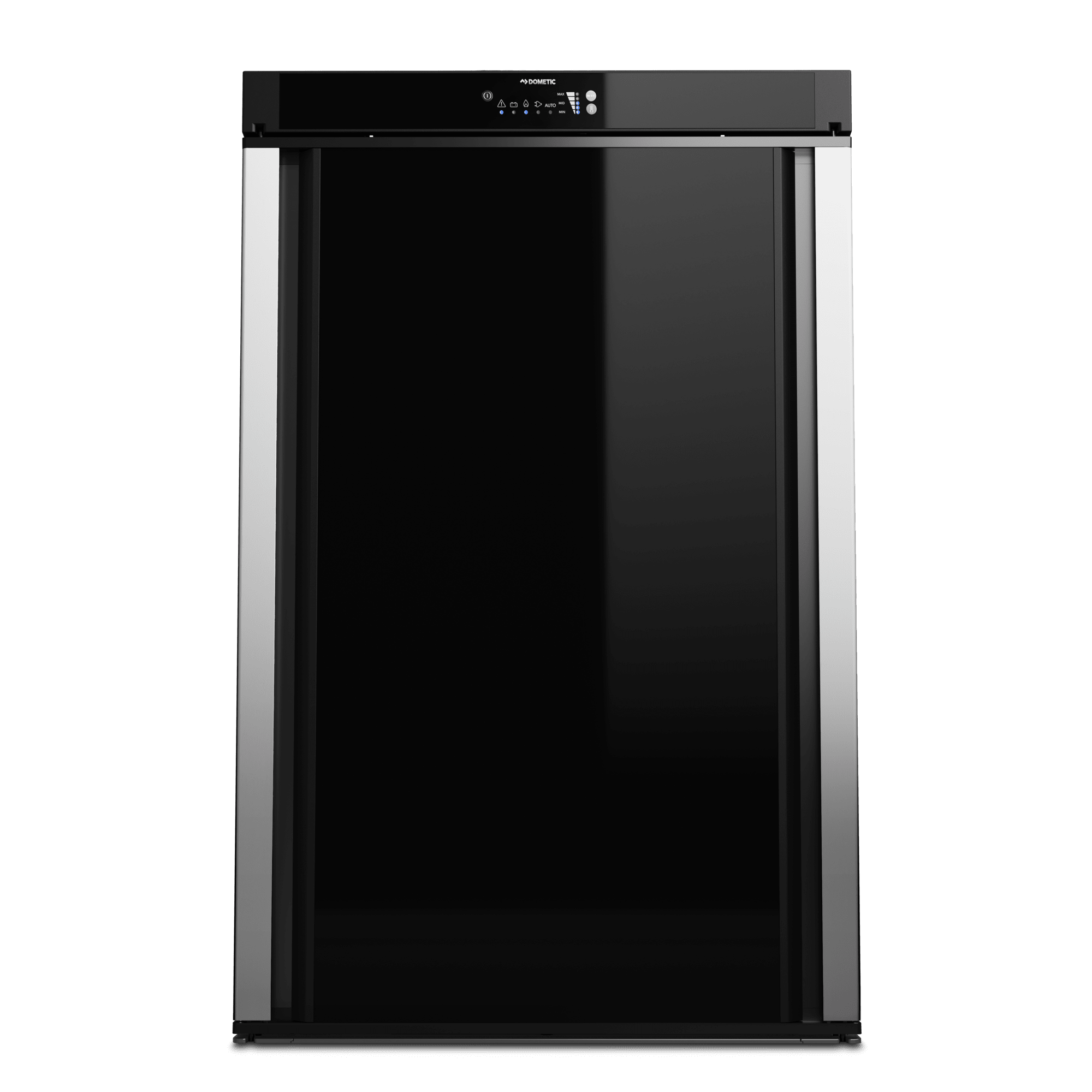

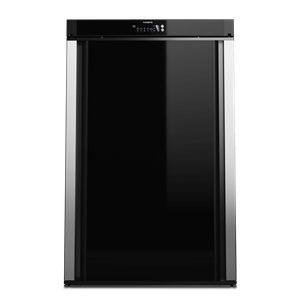

- Elegant aluminium door handles extend over the complete fridge height

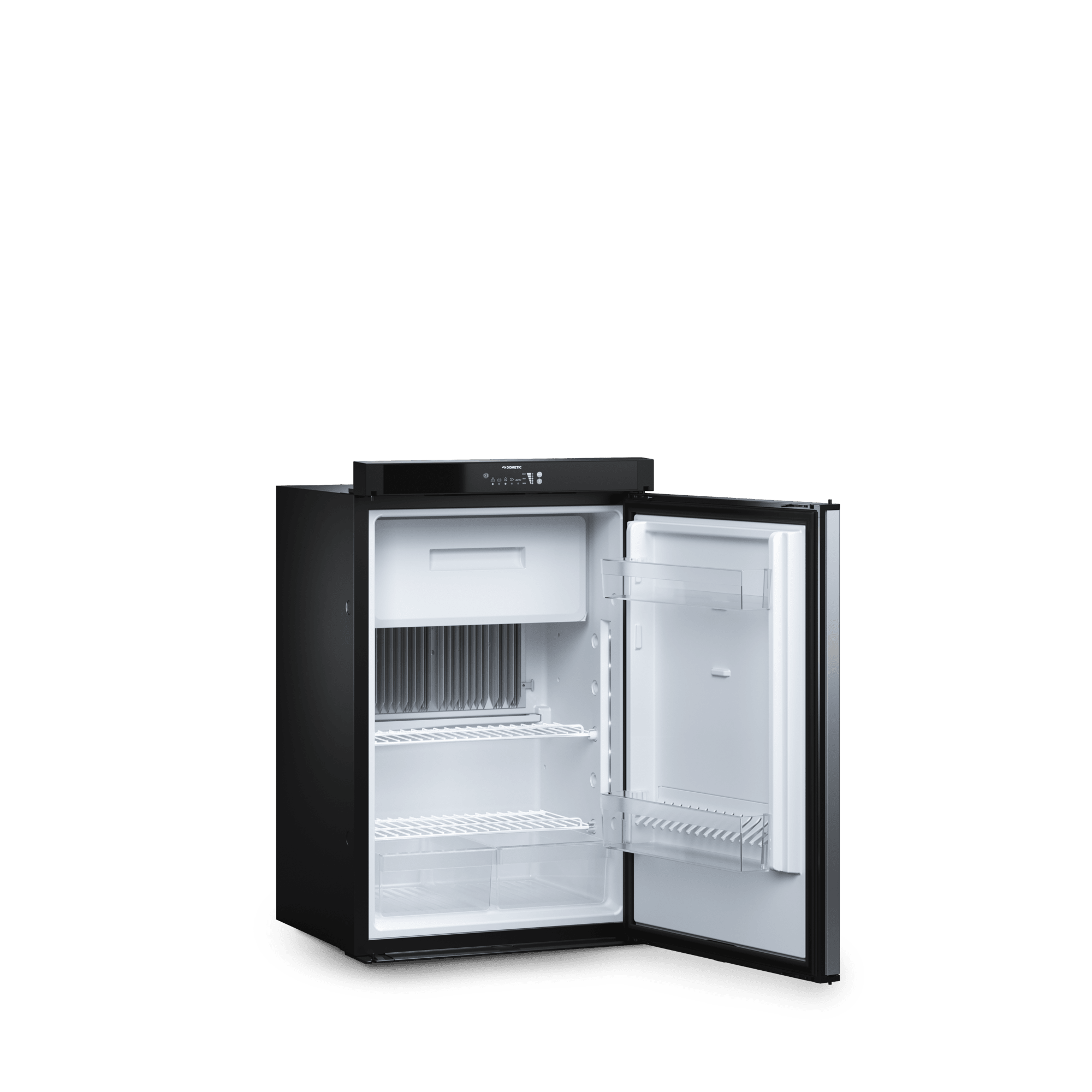

- Flexible interior storage with two small crispers to store fresh fruit and vegetables separately
- Noiseless absorption cooling on 12 V, 230 V or gas
- Full side LED interior light
- Automatic Energy Selector (AES): Automatically selects the most efficient power source
- Single-door model 523 mm wide
- Winter mode
- Two-point locking mechanism for increased safety
- Care must be taken to always ensure good ventilation in accordance with manufacturers guidelines
*** Please Note: VENTING of the fridge is extremely important. You MUST meet Manufacturers Guidelines. The Fridge does not come with venting kits.
*** Please ensure that you have read the manual to assess suitability and full functionality prior to purchasing. Description is without any responsibility on our part and subject to change by the manufacturers.
Manual
The manual for this item is available from the ’Download Manual’ tab above.
BRAND | Dometic |
WEIGHT | Net 28 kg Logistics 35 kg |
PRODUCT CODE | 9620018562 |
GROSS CAPACITY | 86 litres, with fridge capacity 77.4 litres and freezer capacity 8.2 litres |
CONNECTIONS | 12 volts DC/230 Volts AC/ LPG 30mbar |
TEMPERATURE RANGE | Refrigerator +7 °C, freezer compartment up to –12 °C at ambient temperatures up to 32 °C (equivalent to climate class SN) |
DIMENSIONS (W X H X D) | 523 x 821 x 548 mm |
TEST MARK | Certified to European Gas Appliance Directive 90/396/EEC, E certified to automotive EMC Directive |
RATED INPUT POWER (AC) | 135 W |
RATED INPUT POWER (DC) | 130 W |
INPUT FREQUENCY | 50 Hz |
GAS CONSUMPTION (G/24H) | 270.00 g/24h |
GROSS VOLUME | 93 litres |
COOLING SYSTEM | Absorption |
ENERGY CONSUMPTION | 2.8 kWh/24h (230V) |
DOOR HINGE | Double-hinged door |
| THERMOSTAT CONTROL | UES |
IGNITION SYSTEMS | AES (automatic energy selector) |
COLOUR | Black |
